TYPHON xFlex-4068ET Electric Rubber Track Scissor Lift 3.2 Ton with 5.4HP Hydraulic Pump Motor Drive and Hydraulic Lifting Cylinder, 40 ft Max Lifting Height

Description

Product Capability and Application Guide

This application-oriented description presents the useful capabilities, job types, and key technical values associated with TYPHON xFlex-4068ET Electric Rubber Track Scissor Lift 3.2 Ton with 5.4HP Hydraulic Pump Motor Drive and Hydraulic Lifting Cylinder, 40 ft Max Lifting Height for informed equipment planning.

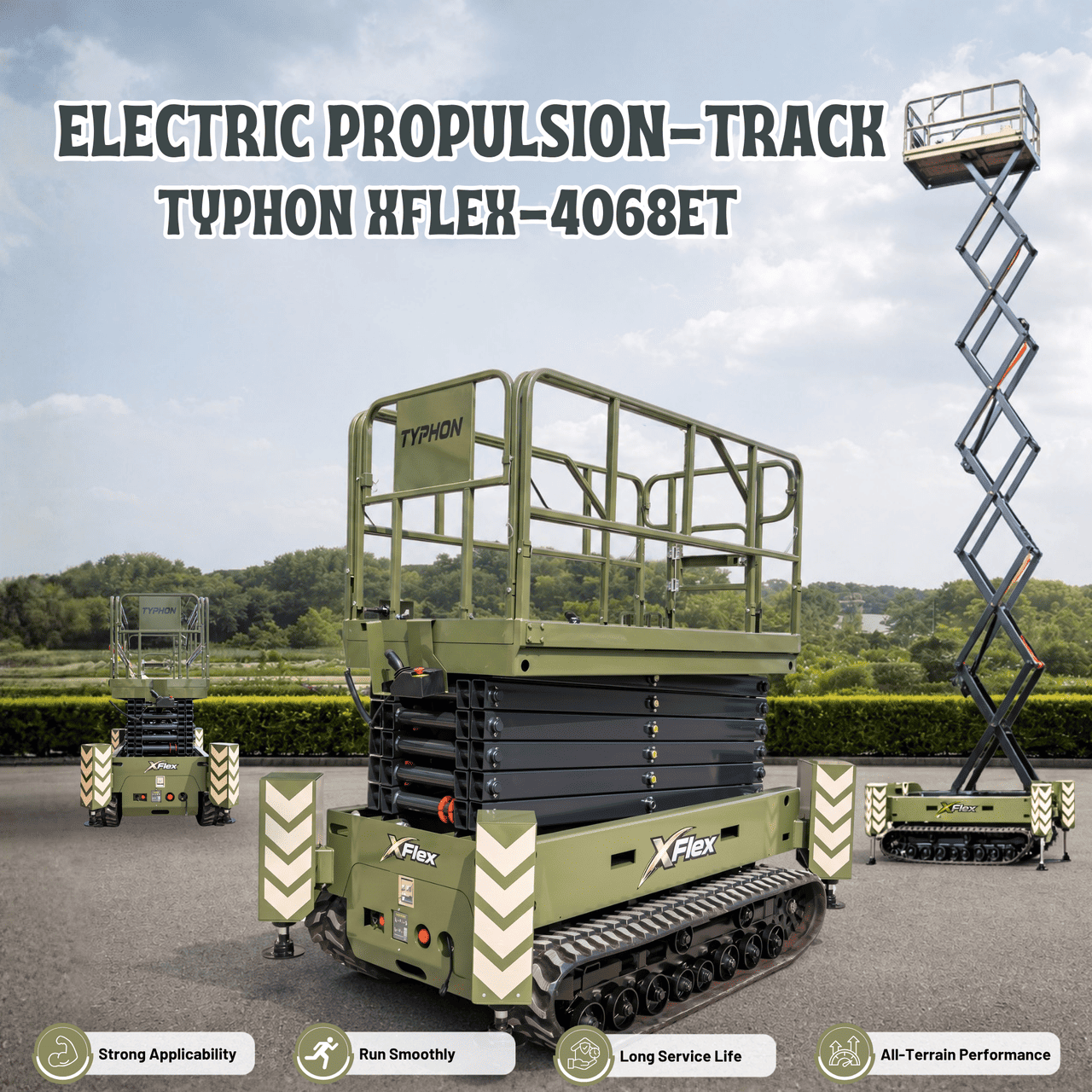

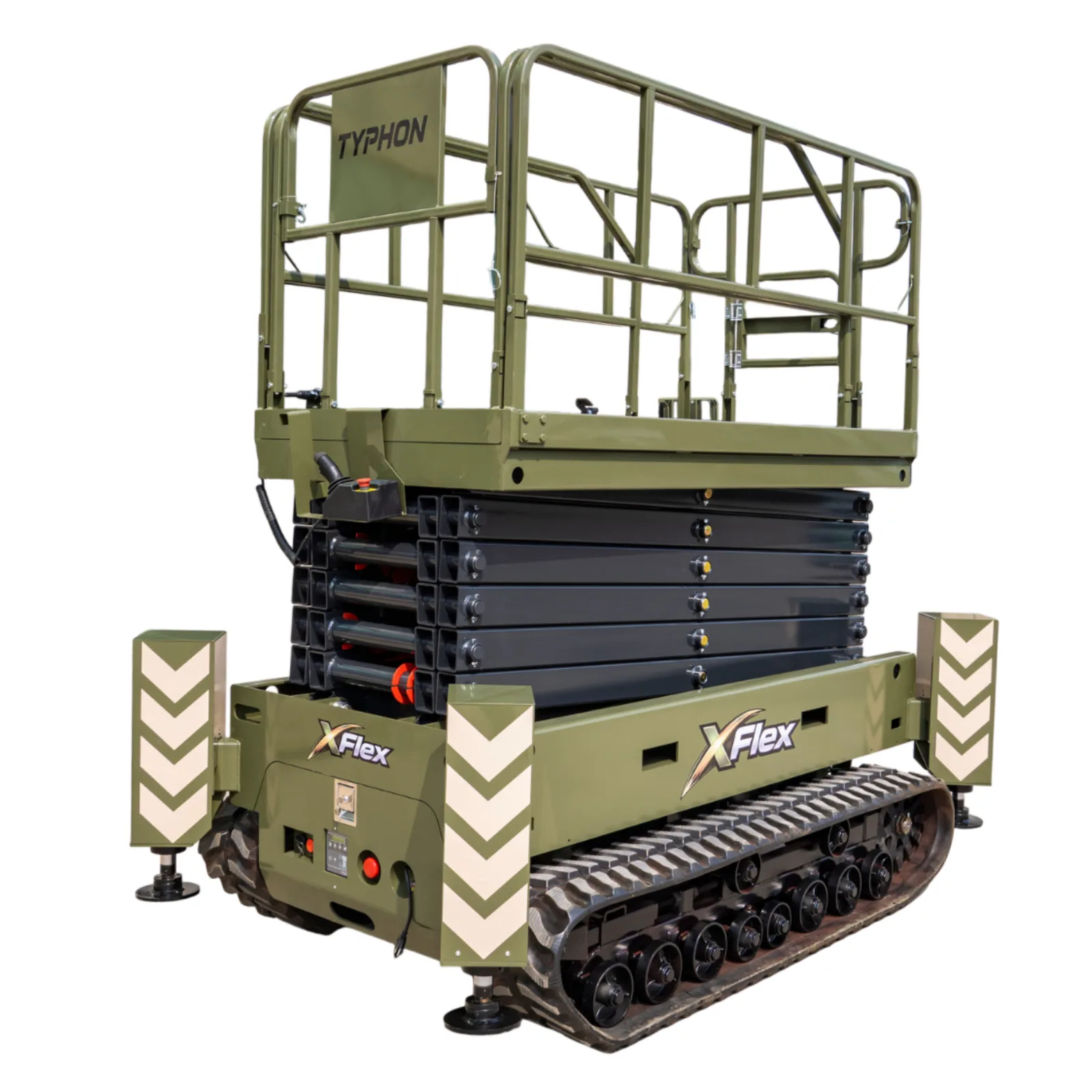

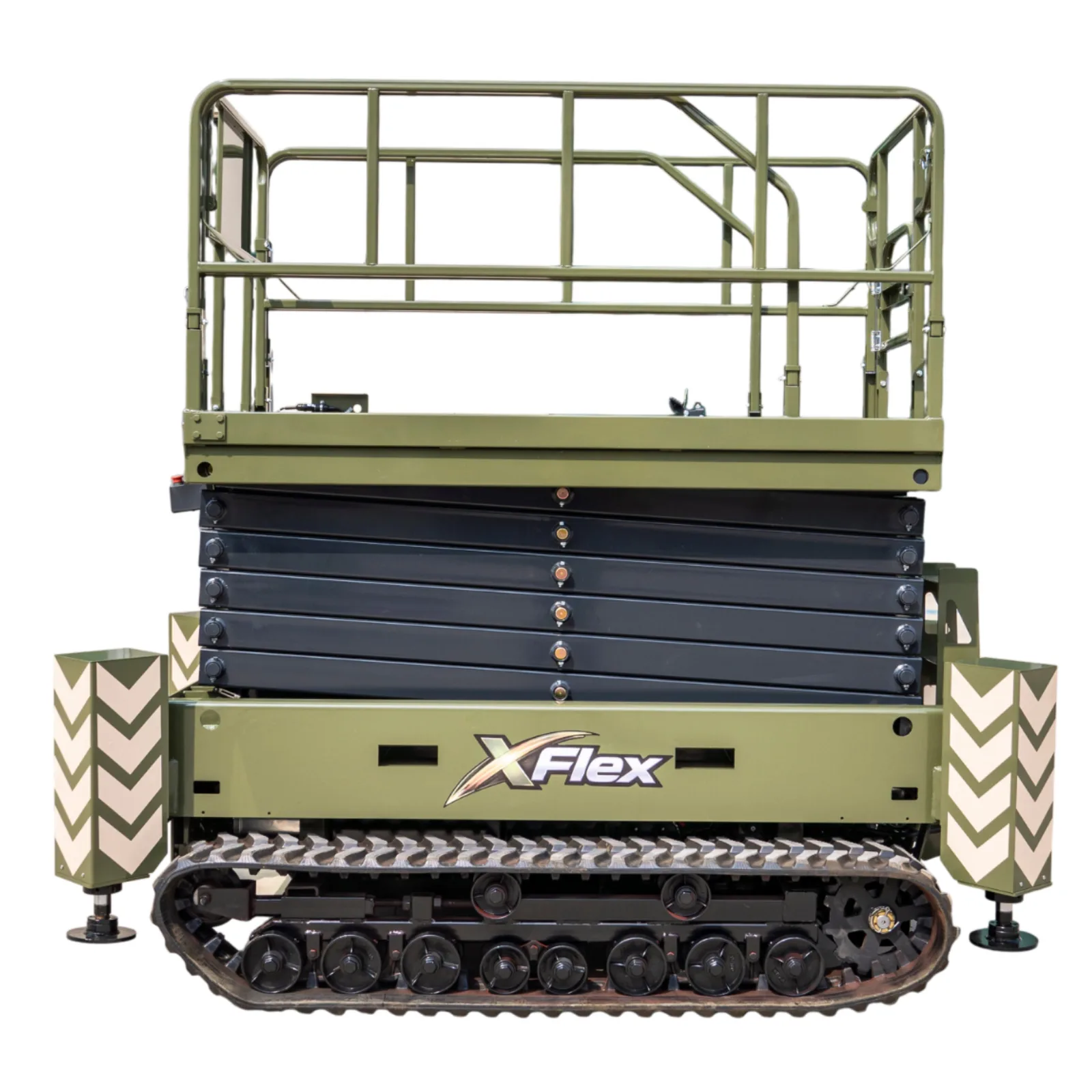

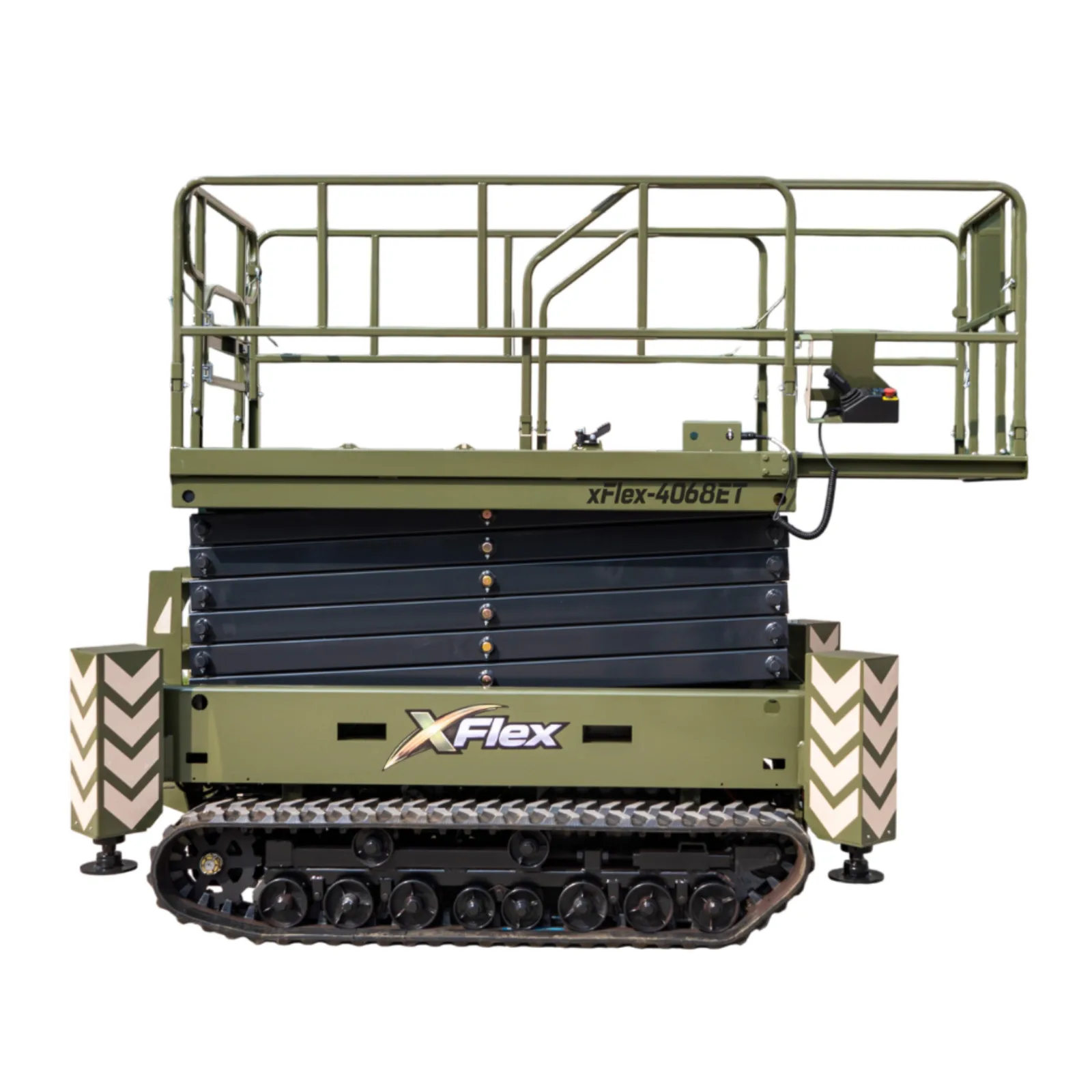

The TYPHON xFlex-4068ET Scissor Lift is a high-reach, heavy-duty electric lifting solution designed for demanding industrial, construction, and facility maintenance operations. With a powerful 3.2 tons structure and an impressive maximum platform height of 40 ft, this model combines exceptional vertical access while maintaining stability, precision, and operator safety. Built for professionals who require maximum reach without compromise, the xFlex-4068ET ensures reliable performance in high-elevation environments.

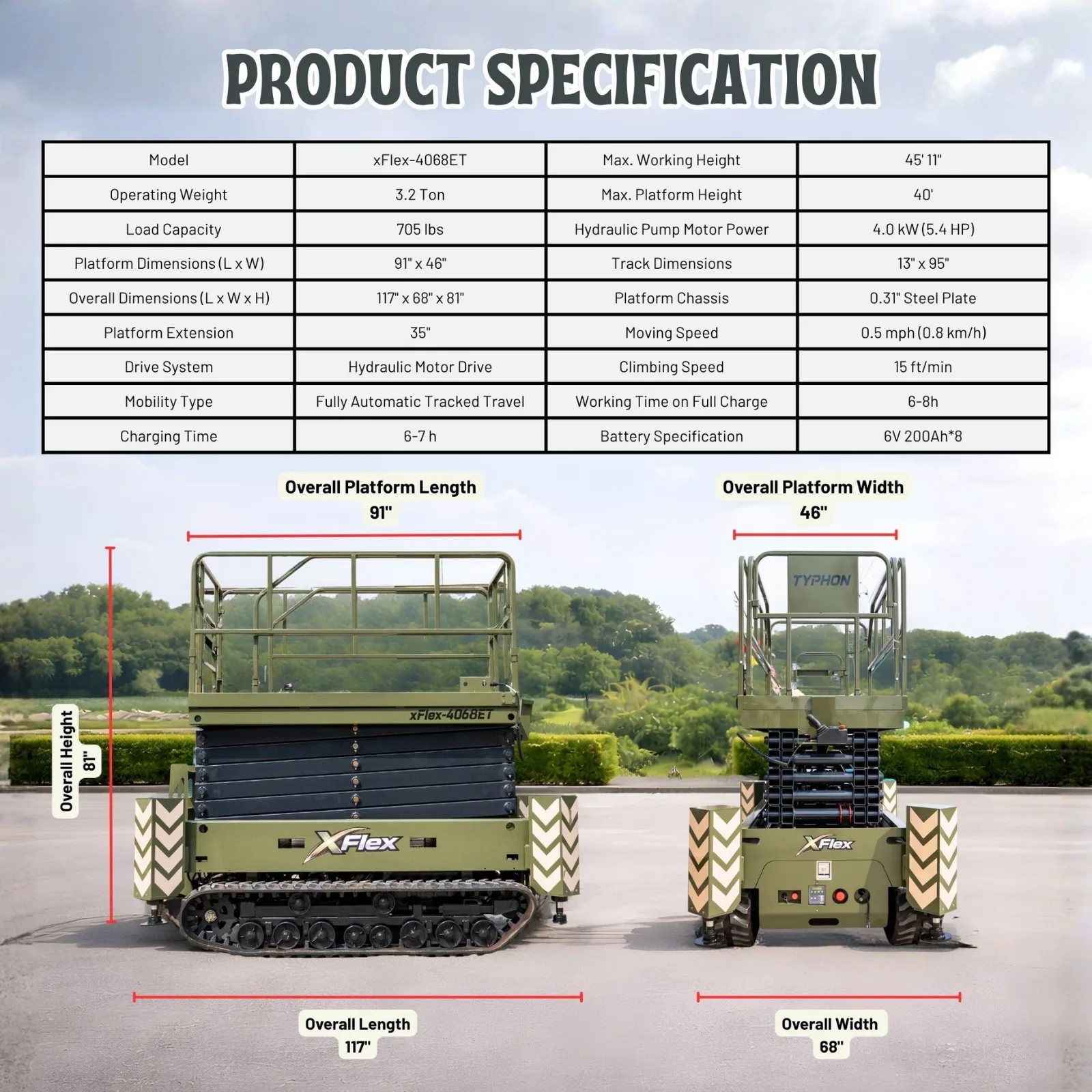

1. Reach New Heights with ConfidenceThis high-performance scissor lift is constructed to manage demanding work at elevation. It features an overall height of 81-inch (fence not folded), a maximum platform elevation of 40 ft, and a maximum operating height of 45 ft 11-inch.

With a safe working load of 705 lbs, it easily supports operators and tools. The 35-inch platform extension enhances reach, while the powerful 4kW (5.4 HP) lifting oil pump motor ensures smooth lifting. Built with a reinforced platform chassis using 8 thick steel plates for maximum strength and durability.

2. Superior ManeuverabilityDeveloped for strength and agility, this machine has a total weight of 3.2 tons, with an overall length of 117-inch and a width of 68-inch for balanced, compact handling. Built on durable 13-inch × 95-inch tracks, it combines excellent traction and stability across rough terrain.

The spacious 91-inch × 46-inch platform is reinforced with a heavy-duty 0.31-inch steel plate chassis for enhanced durability and operator support. It combines a maximum climbing capability of 30°, which supports confident operation on slopes, while a climb rate of 15 ft/min ensures efficient vertical performance. Built for stability, precision, and smooth movement in demanding jobsite conditions.

3. Premium Power and Lasting PerformanceEquipped with a walking-style hydraulic motor drive, this machine ensures smooth, stable, and efficient movement across various job sites. It combines a controlled speed of 0.5 mph for precise positioning and safe operation in tight spaces.

Powered by a storage battery 6V/200Ah × 8 and comes with a built-in 48V/30A charger, it combines reliable energy support. Charging time: 6–7 hours. Working time on full charge: 6–8 hours, ensuring long-lasting productivity and reduced downtime.

4. Safety FeaturesThe machine includes a safety maintenance support rod for secure servicing. The guardrail, bracket, and support leg system enhance platform safety during elevated work, while the robust scissor lift structure ensures stable lifting performance.

A fault code battery display enables operators to perform quick diagnostics, and a main power switch combines immediate system control. The integrated power plug ensures safe charging, while fully automatic tracked travel combines stable and secure movement on various terrains. 5.

Control FeaturesEquipped with an intelligent control system, automatic leveling outriggers for smooth and precise operation, this unit ensures efficient performance in all conditions. The chassis control system enables stable ground maneuvering, while forward/backward and up/down controls provide accurate positioning and lifting. An emergency stop ensures immediate shutdown for safety.

The turtle speed switch enables operators to perform slow, controlled movement in tight spaces, and the platform expansion control device adds extra.

Selection, Capacity, and Compatibility

Validate rated lifting capacity, working height, overall dimensions, power requirements, floor or terrain conditions, and the intended operating environment before selecting the final configuration.
