TYPHON Skoop Heavy-Duty Wheel Loader Log Grapple 295 lbs Robust Log & Brush Handler with 6+4 Tine Grip

Description

Product Capability and Application Guide

This application-oriented description presents the useful capabilities, job types, and key technical values associated with TYPHON Skoop Heavy-Duty Wheel Loader Log Grapple 295 lbs Robust Log & Brush Handler with 6+4 Tine Grip for informed equipment planning.

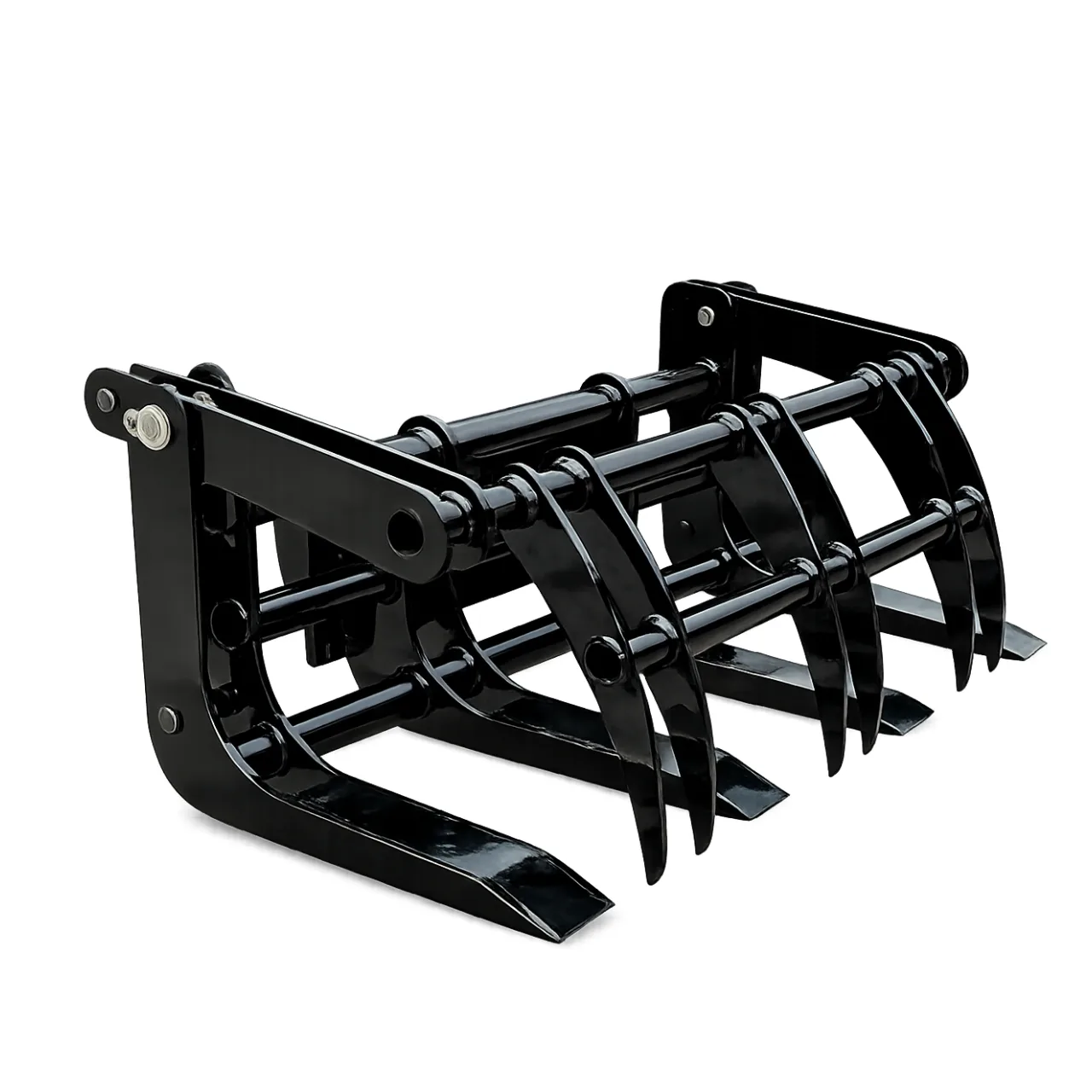

The TYPHON Skoop Wheel Loader Log Grapple is a heavy-duty attachment built for powerful, efficient handling of logs, brush, and other bulky materials. Developed for durability and maximum gripping strength, whether you are loading, moving, or stacking, this robust grapple combines the control, toughness, and performance needed for demanding jobs.Technical Specifications:Compatibility: Typhon Skoop Wheel LoaderOverall Dimensions (L x W x H): 47.24 inches x 30.71 inches x 19.88 inches (1200 × 780 × 505 mm)Upper Tine Configuration: 3 Sets (6 Tines Total) Upper Tine Spacing: 11.81 inches (300 mm)Lower Tine Configuration: 4 Tines TotalLower Tine Spacing: 11.81 inches (300 mm) (Center) / 9.84 inches (250 mm) (Both Sides) Net Weight: 295.42 lbs (134 kg)Gross Weight: 374.79 lbs (170 kg)Ideal Applications:Forestry & Logging: Efficiently moving and loading logs, timber, and large branches.Land Clearing: Quickly clearing brush, debris, and felled trees from construction sites or new developments.Property Maintenance: Managing large acreage, moving fallen trees after storms, and handling firewood.Agriculture & Farming: Moving large bales, fencing materials, or clearing field edges.Demolition & Recycling: Sorting and handling bulky demolition debris or large recyclable materials.Note: Ensure the combined weight of the attachment and your intended load does not exceed the machine's rated operating capacity at specific lift heights

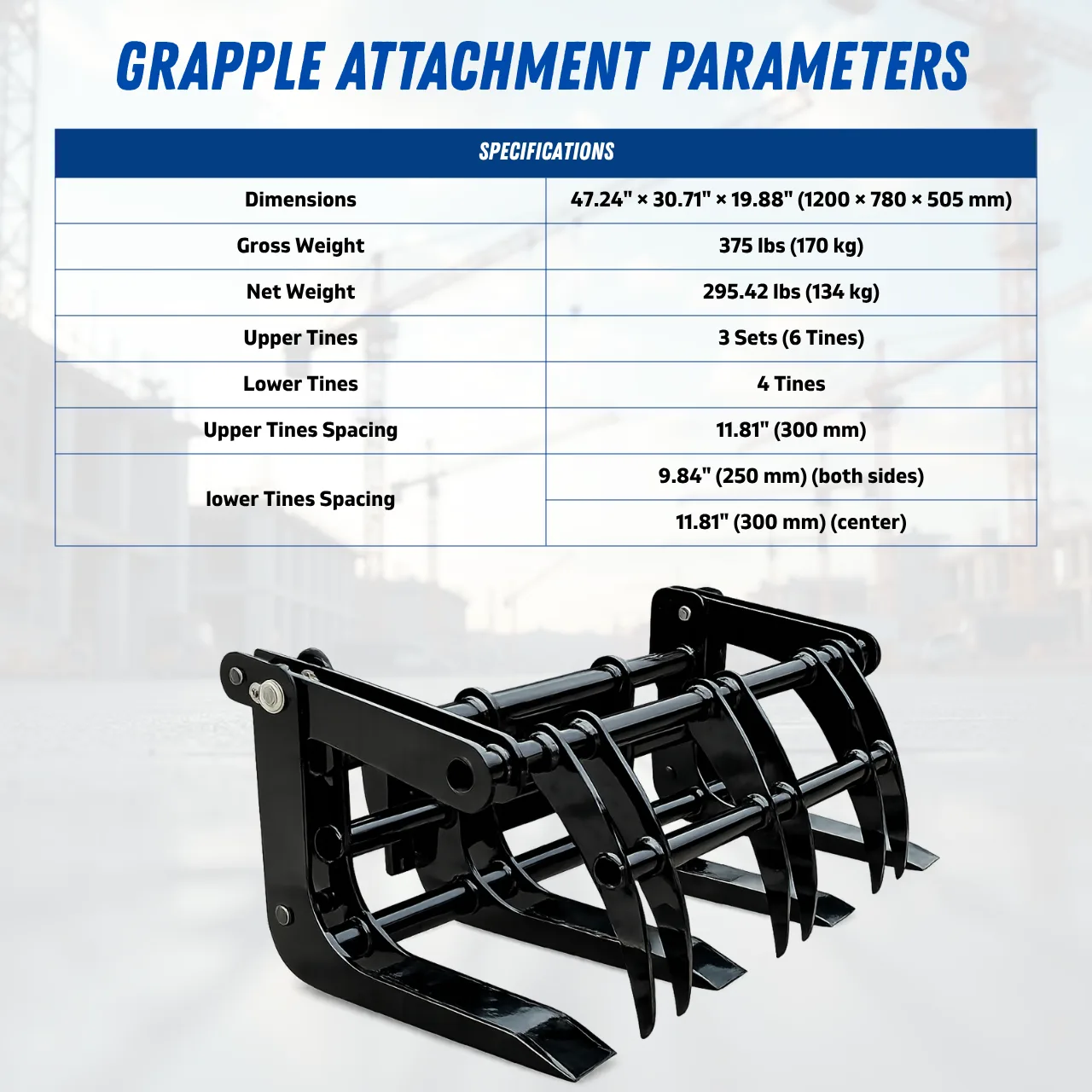

Equipment Highlights and Technical Data

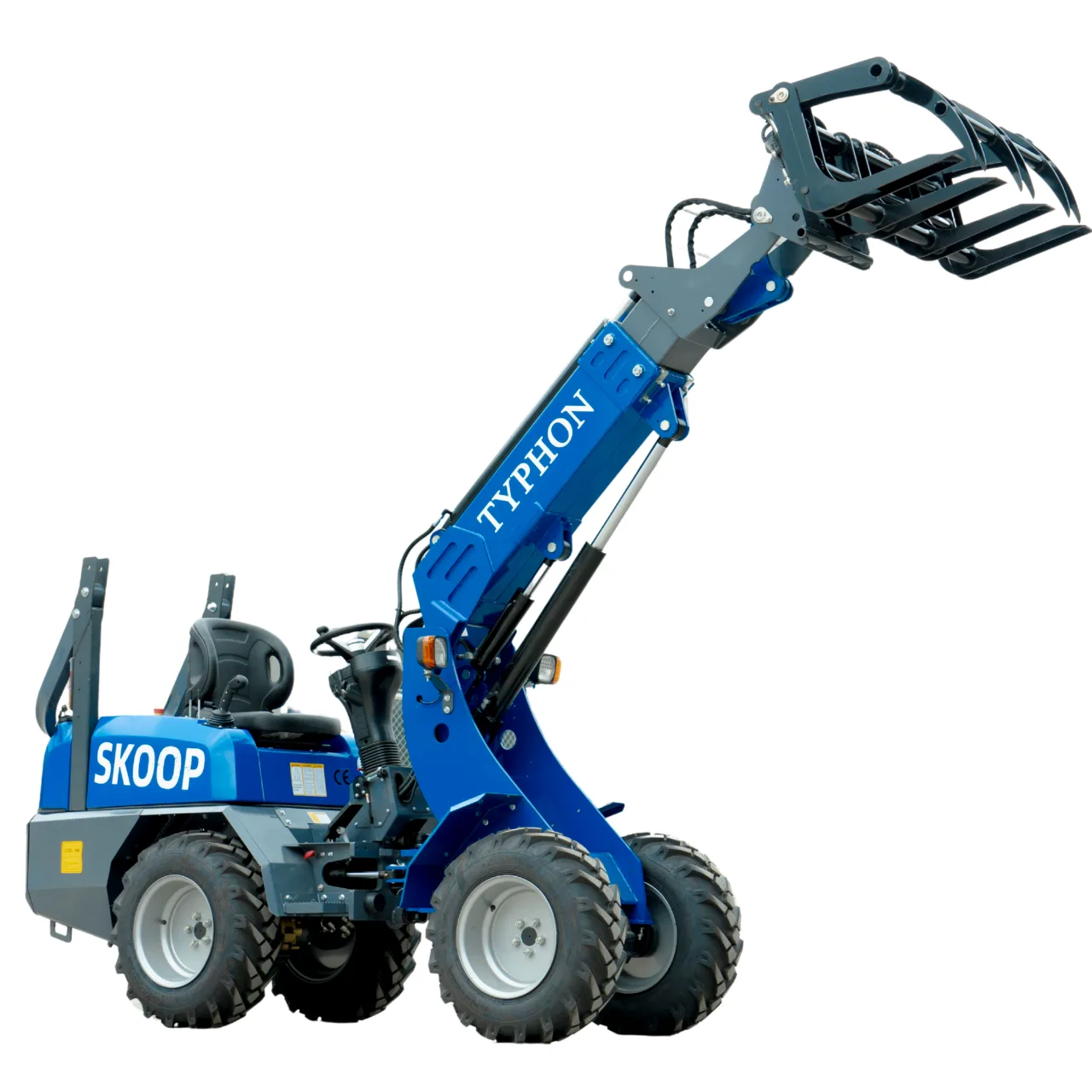

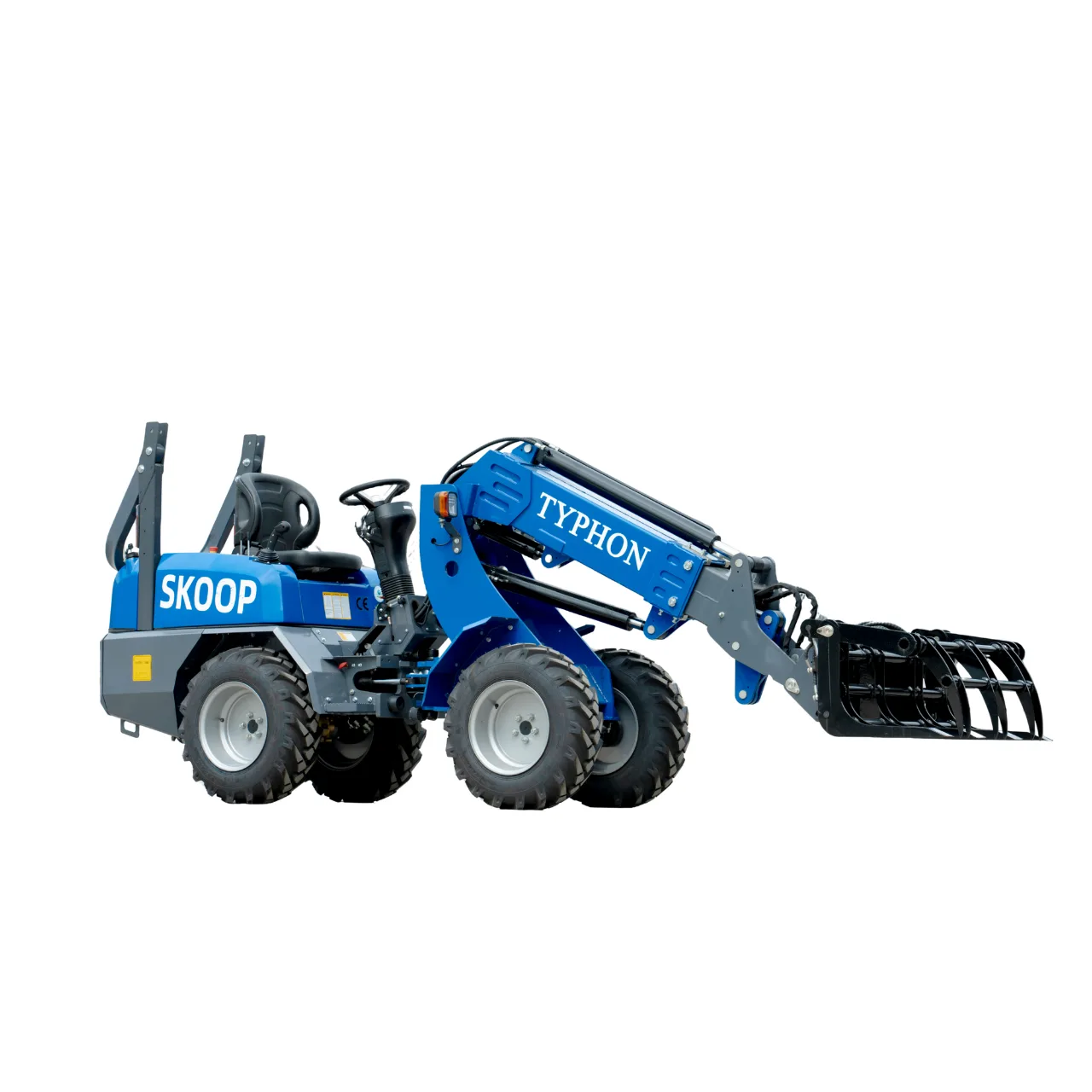

• Compatibility: Typhon Skoop Wheel Loader

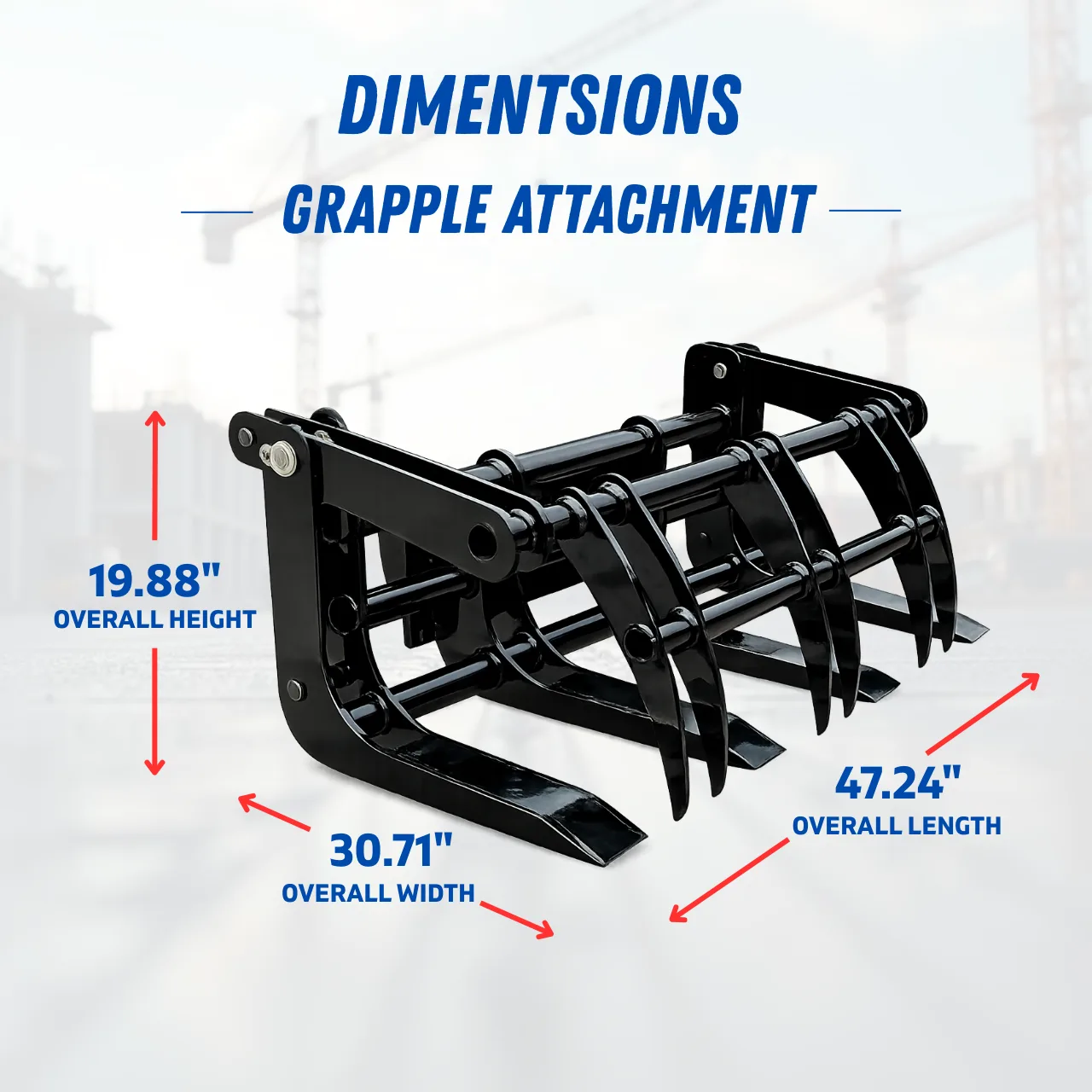

• Overall Dimensions (L x W x H): 47.24 inches x 30.71 inches x 19.88 inches (1200 × 780 × 505 mm)
• Upper Tine Configuration: 3 Sets (6 Tines Total)
• Upper Tine Spacing: 11.81 inches (300 mm)
• Lower Tine Configuration: 4 Tines Total
• Lower Tine Spacing: 11.81 inches (300 mm) (Center) / 9.84 inches (250 mm) (Both Sides)
• Net Weight: 295.42 lbs (134 kg)
• Gross Weight: 374.79 lbs (170 kg)
• Forestry & Logging: Efficiently moving and loading logs, timber, and large branches.
• Land Clearing: Quickly clearing brush, debris, and felled trees from construction sites or new developments.
• Property Maintenance: Managing large acreage, moving fallen trees after storms, and handling firewood.
• Agriculture & Farming: Moving large bales, fencing materials, or clearing field edges.
• Demolition & Recycling: Sorting and handling bulky demolition debris or large recyclable materials.

Selection, Capacity, and Compatibility

Before ordering, verify the host machine model, mounting dimensions, hydraulic flow and pressure requirements, attachment weight, and rated operating capacity. Use the attachment only within the limits stated for the carrier machine and the selected working height.
